Asenware Fire Alarm Heat Detector
Original price was: KSh 1,400.00.KSh 1,200.00Current price is: KSh 1,200.00.

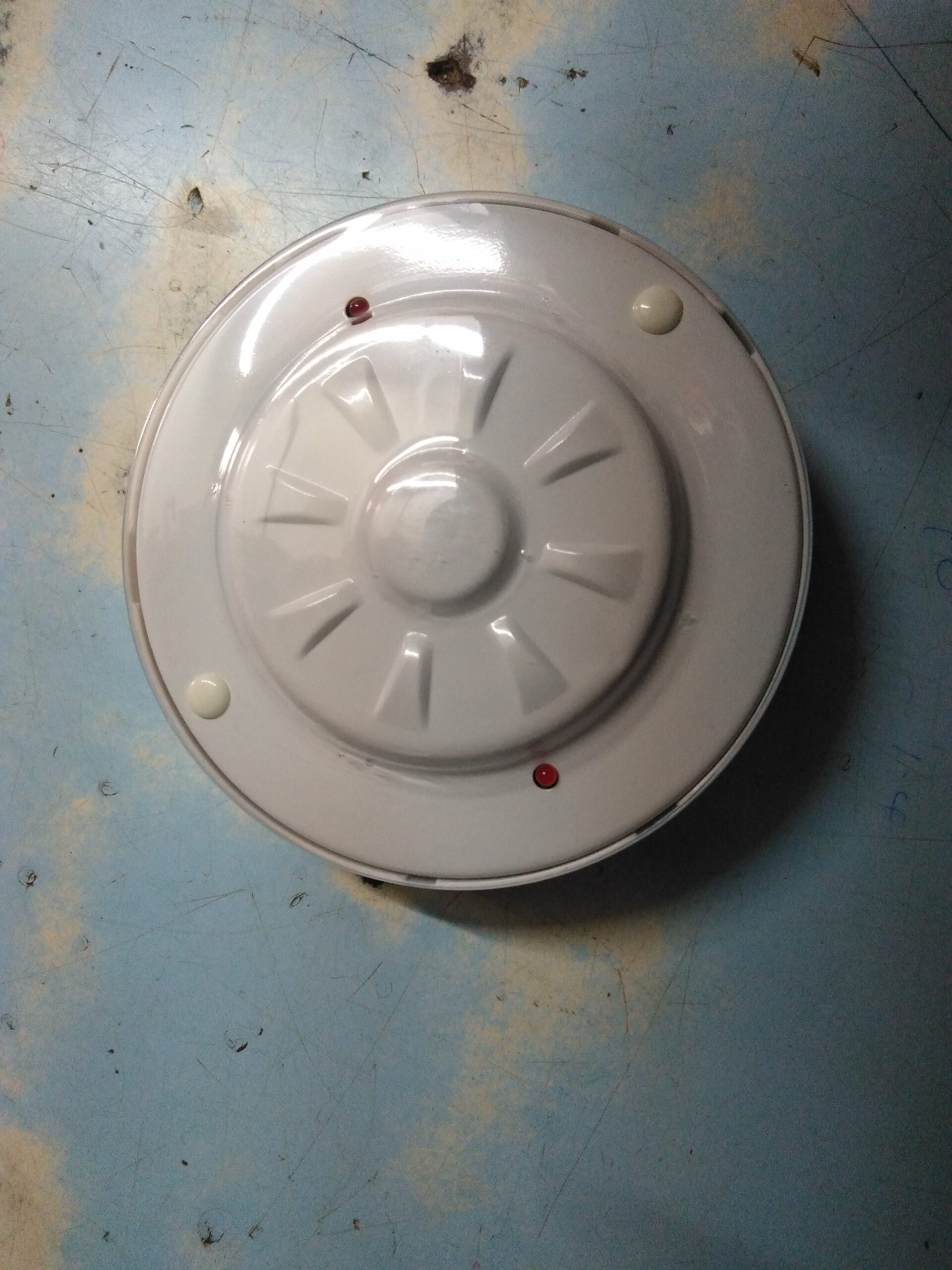

Asenware Fire Alarm Heat Detector has two LEDs on each detector providing a local 360° visible alarm indication. They die out when the ambient temperature does not reach the alarm value. If the temperature reaches the alarm value, then the detector enters alarm mode and LEDs light.
Operating Voltage Range: 9 to 28 VDC Volts Non-polarized.
The conventional rate of rising heat detector uses thermal components to detect the temperature changes in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rising temperature value. It can also enable fire alarm when the absolute temperature value reaches the setting fixed value. It has a stable and reliable working performance.
Maximum Alarm Current(LED on):
≤48mA@24VDC
Operating Temperature Range: -10℃ to 70℃
Fix Temperature Range: 60℃
Rate of Rising Alarm: 7.1℃/5S
Height: 31.78mm installed in Base
Diameter: 99.45mm
In stock
Description
Asenware Fire Alarm Heat Detector AW-CTD321 is a photo-electronic detector using a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panels.
1. Strong Adaptability For Circumstance
2. SMT Design, High Stability
3.40-60vdc Wide Voltage Operating Range
4. Low Standby Current
5. Power Supply Non-Polarized input
6. Twin Led For 360 Visual
7. Flashing Led Power Indicator
8. Remote Led Indicator Output(2-Wire)
9. Metal Shield. Anti-Electromagnetic Interference
